Sleeper Koi Pond Build, Mildenhall Update
Engineering-Led Above-Ground Koi Pond Specialists | Norfolk & Suffolk
If you’re searching for a koi pond builder in Norfolk or Suffolk, here’s the straight truth:
we’re not just pond builders — we understand engineering, water pressure, and flow.
And when a site throws problems up, we adapt and overcome.

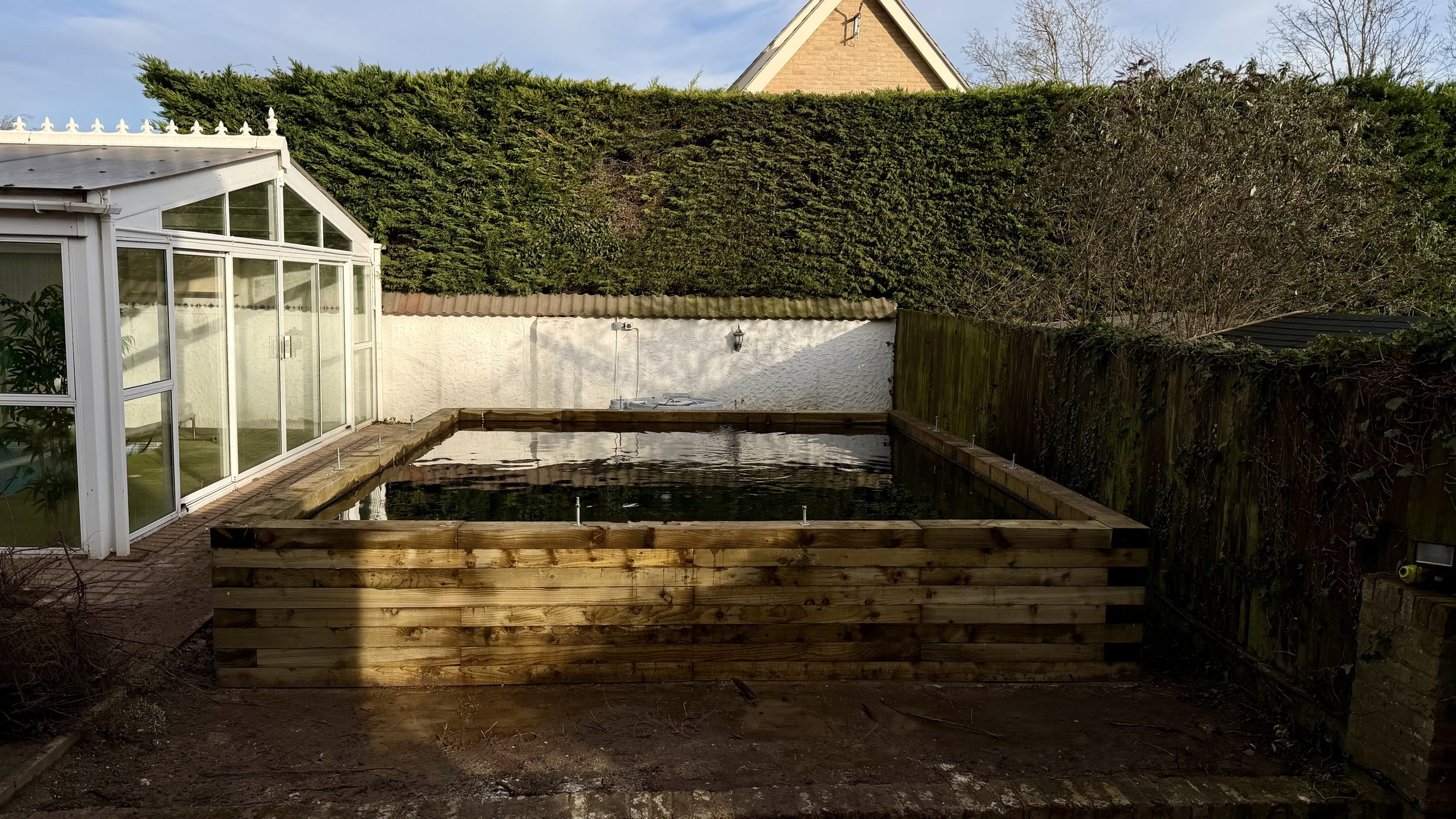

This above-ground sleeper koi pond in Mildenhall is a textbook example.
Project Overview
Location: Mildenhall (serving Norfolk & Suffolk)
Pond size: 6m x 4.8m
Height: 0.7m above ground
Build type: Fully engineered sleeper koi pond
Design focus: Structural integrity, water pressure control, clean aesthetics
This was never about digging a hole and hoping for the best.
Engineering for Water Pressure (Because Water Always Wins)
A raised pond of this footprint carries significant lateral hydrostatic pressure. That pressure increases exponentially with height — and ignoring it is how sleeper ponds fail.

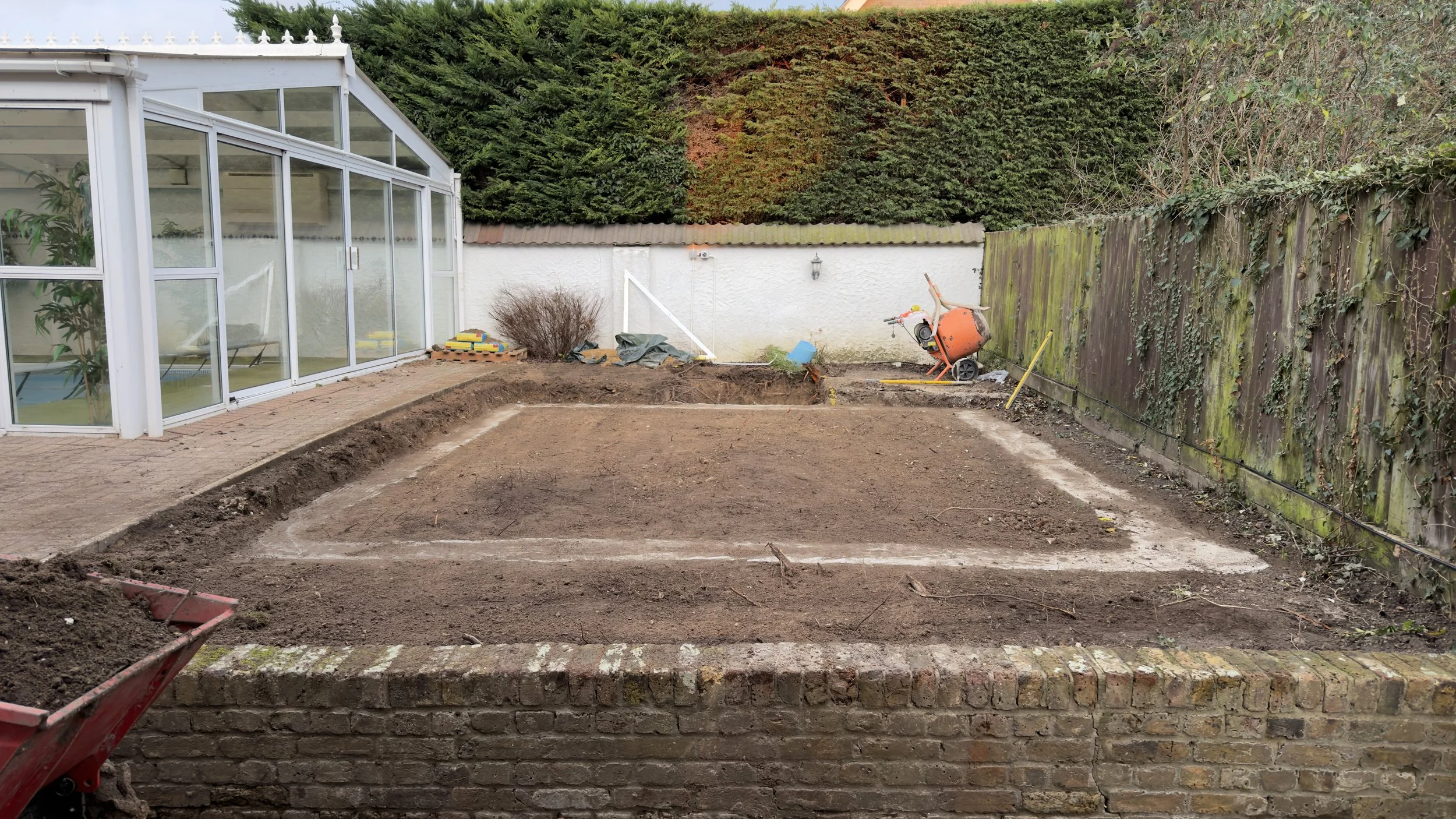

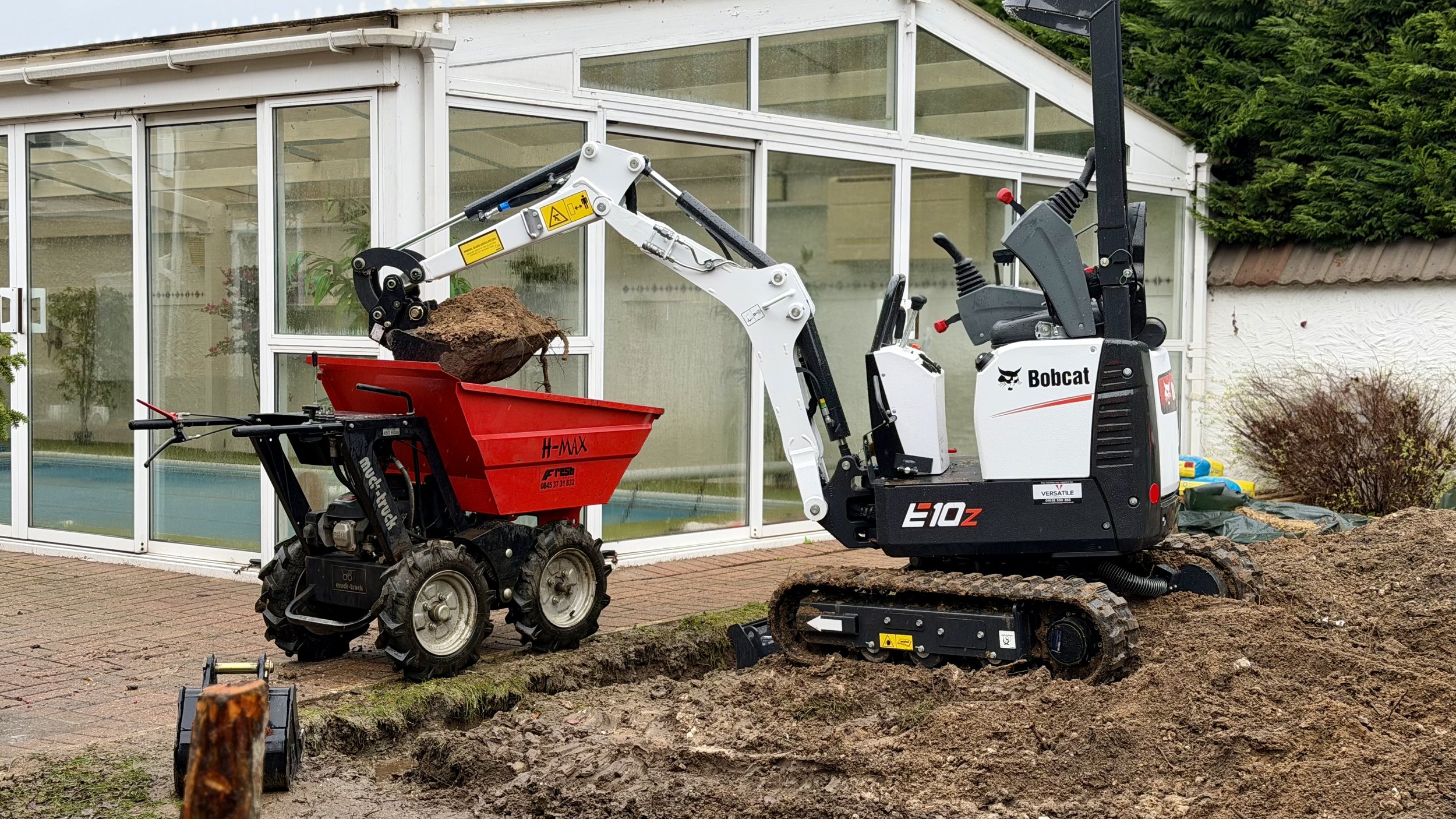

Foundations
Continuous foundations using a 4:1 concrete mix (cement : ballast)
Designed specifically to resist outward force from a raised water column
Built to suit local ground conditions in Norfolk & Suffolk
Structural Reinforcement
300 x 300mm box steel integrated into the structure
Eliminates flex, bowing, and long-term movement
Turns stacked sleepers into a single load-bearing system
Sleeper Construction
Dense sleepers laid in a bonding pattern
Over 800 M8 x 250mm structural bolts
Load spread evenly across the entire structure
Mechanical Fixing to Foundations
M16 threaded bar driven 150mm into the concrete
Locked with square washers and lock nuts
Sleepers physically tied into the foundation — not just sat on it
This is how you design for water pressure.
No guesswork. No crossed fingers.
Clean Finish: No Visible Pipes or Cables
Because engineering doesn’t have to look industrial.
All pipework and cabling were installed using flanged penetrations, allowing services to pass cleanly through the structure.
Result:
No pipes over the walls
No exposed cables
Reduced leak risk
Sleek, intentional finish
On an above-ground koi pond, this matters — everything is on display.
Filtration System: Sized, Not Guessed
The filtration system was designed to match volume, turnover, and biological load.
Installed Filtration
Nexus 320+ gravity-fed from a bottom drain
Vario 22,000 lph pump
80w amalgam UV
Medo 120 lph air pump
K1 biological media
This provides:
Strong mechanical waste removal
High biological conversion capacity
Stable parameters and excellent oxygenation
Exactly what a serious koi pond needs.
Problem Solving on Site: Pool Stormwater & Drainage
Here’s where engineering mindset really matters.
The client’s swimming pool stormwater run-off had nowhere to discharge — a common but often ignored issue. Leaving it unresolved risks flooding, ground saturation, and foundation instability.
The Solution: Engineered Soakaway System
Under the Nexus filter base, we installed a 2m x 2m soakaway using modular soakaway crates.
Soakaway Specification
Footprint: 2m x 2m
Depth: 1m
Gross volume: 4.0 m³
Crate void ratio: ~95%
Usable storage volume: ~3,800 litres
Ground Conditions
Sandy, fractured chalk
Excellent infiltration characteristics
Ideal for soakaway performance
Based on BRE-aligned infiltration rates for sandy fractured chalk, the system is capable of dispersing in excess of 10,000–15,000 litres per hour, comfortably handling:
Heavy rainfall events
Pool overflow and stormwater surges
Filter waste discharge
This prevents surface water build-up and protects both the pond structure and surrounding hardscape.
This is what adapting and overcoming looks like.
Why This Matters When Choosing a Koi Pond Builder in Norfolk or Suffolk
This build proves one thing clearly:
Koi pond construction is engineering.
Understanding:
Water pressure
Structural loading
Flow rates
Ground conditions
Drainage and runoff
…is what separates ponds that last decades from ponds that fail quietly.
If you’re searching for:
Koi pond builder Norfolk
Koi pond builder Suffolk
Above-ground koi pond specialist
Sleeper koi pond engineering
Custom koi pond builds East Anglia
You want someone who designs, adapts, and solves problems — not someone copying a generic build.
Thinking About a Raised or Sleeper Koi Pond?
Above-ground koi ponds demand engineering first, aesthetics second.
Get the structure right, control the water, and everything else follows.
If you want a koi pond built properly — foundations, structure, filtration, and drainage — serving Norfolk, Suffolk, and surrounding areas, this is how it should be done.
